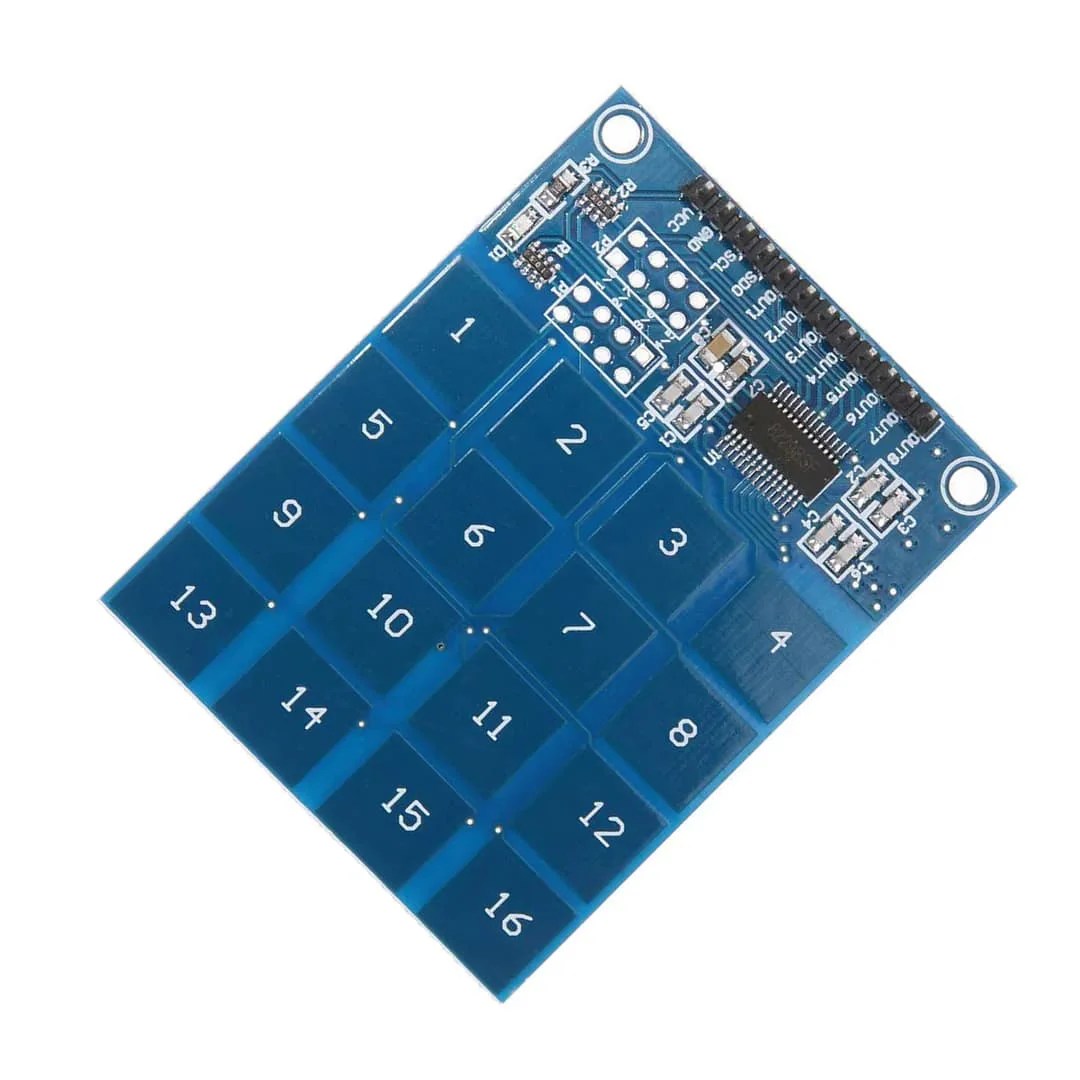

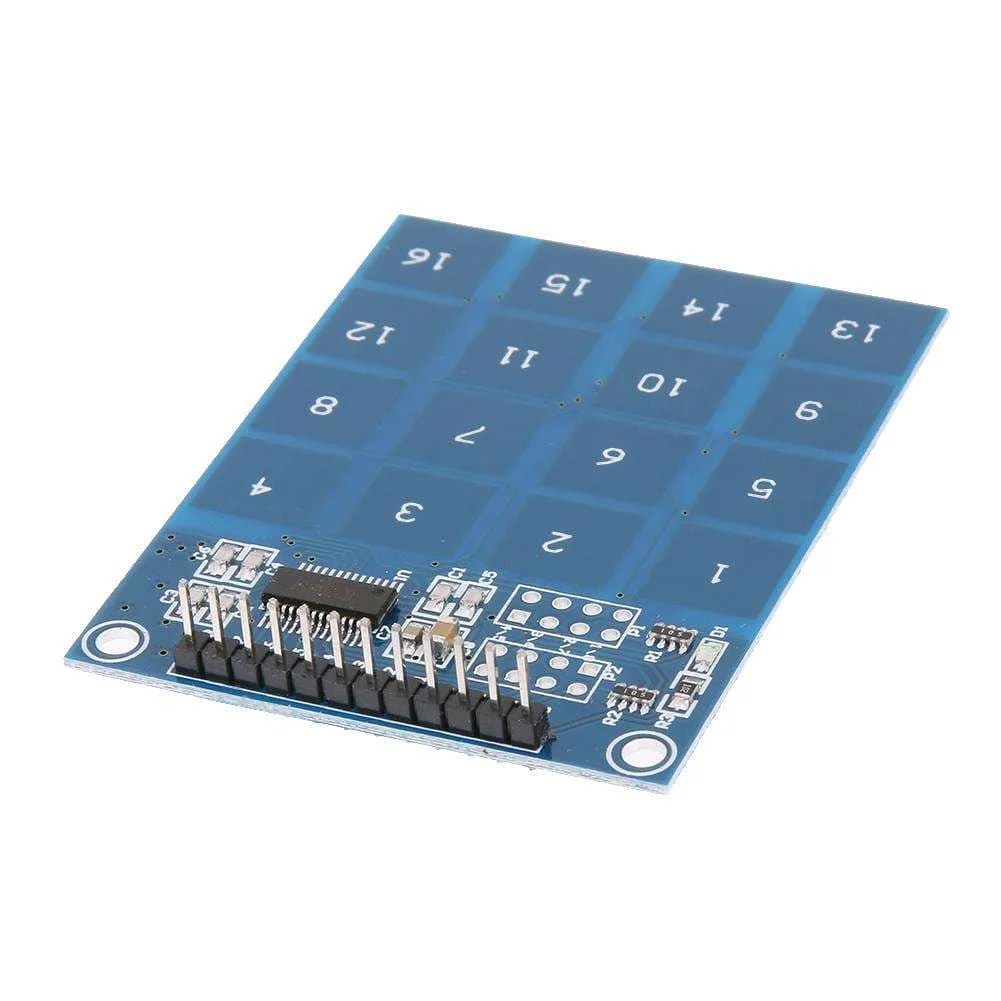

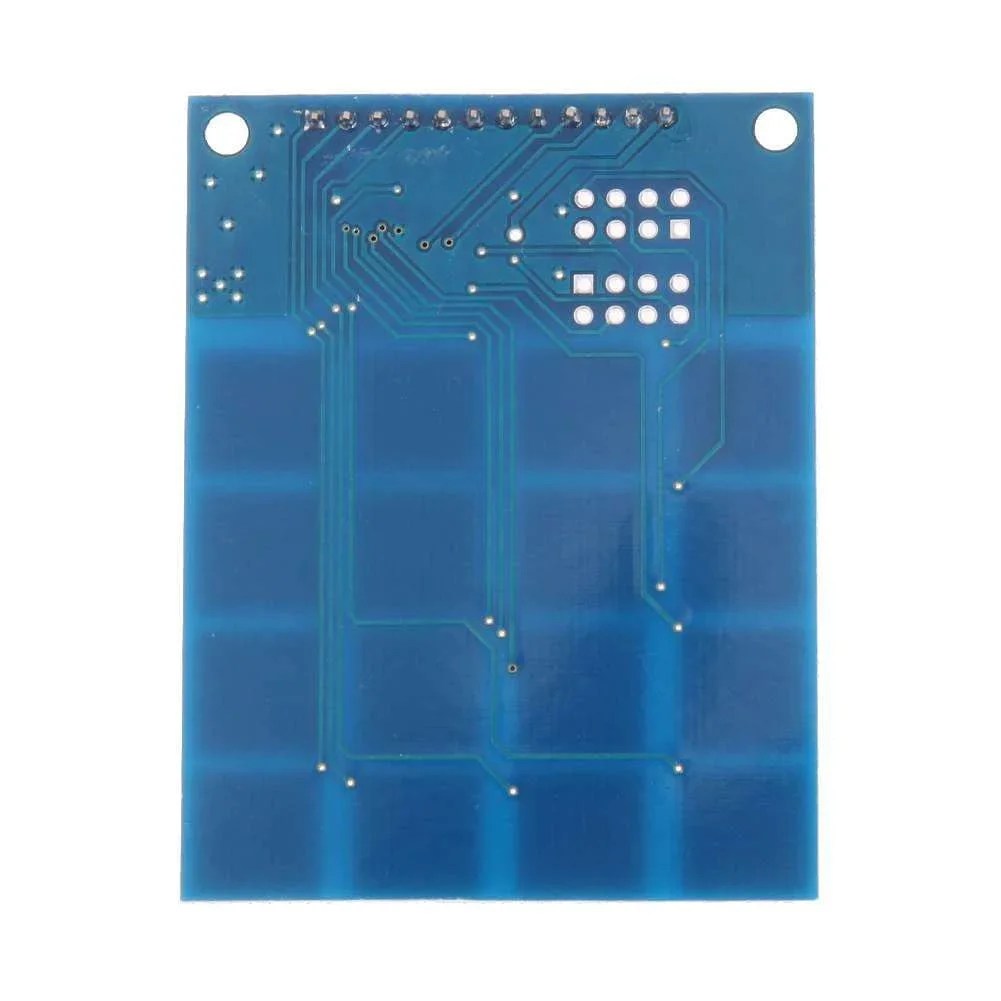

TTP229 16-Channel Digital Capacitive Switch Touch Sensor Module for Arduino is 16 key capacitive touch keypad is based on the TTP229 capacitive sensor with accurate sensing of up to 16 points. Using this keypad provides a solid state alternative to mechanical type keypads providing the advantage of greater durability especially in dusty environments.
Product Code: HCMODU0079
Operating voltage2.4V~5.5V
Built-in regulator
Stand-by current At 3V, and sleep mode slow sampling rate 8Hz
=> Typical 2.5uA for 16 input keys
=> Typical 2.0uA for 8 input keys
8 Key or 16 key modes
Separate outputs to 8 keys in 8 key mode
2 wires serial output interface for both 16 key and 8 key mode
Outputs can be set to CMOS/OD/OC with active high/low
2 Wires serial interface can select active high or low by option
Optional Multi-key or single-key
Provides two kinds of sampling rate: slow sampling rate 8Hz and fast sampling rate 64Hz at sleep mode
Optional maximum key-on time about 80sec
Auto calibration at power up (keypad must not be touched for 0.5 seconds after power-up)
Auto calibration for changes in an environment
